The project's purpose was to fill the gap between buildings alone the street and to create an architectonically beautiful solution that would serve the community.
As the given program of a car repair shop does not necessarily provide a pleasant space for the community the decision has been made to move all working areas underground. Two spacious patios direct natural light to the underground level and provide a rest area for the workers. The area above transforms into a public park and the reception and office spaces create a sculptural ensamble alone one side of the gap. The materials were selected to fit the current surroundings.
The project is developed as part of the first-year studio.
![](https://cdn.myportfolio.com/fdb4ec76-4de5-4231-96a2-ea75dda3ad03/97506edc-28b0-4386-9e29-6d55142fb9e3_rw_1920.jpg?h=408b4cf52ef4385679f0fb4b62c6b9a4)

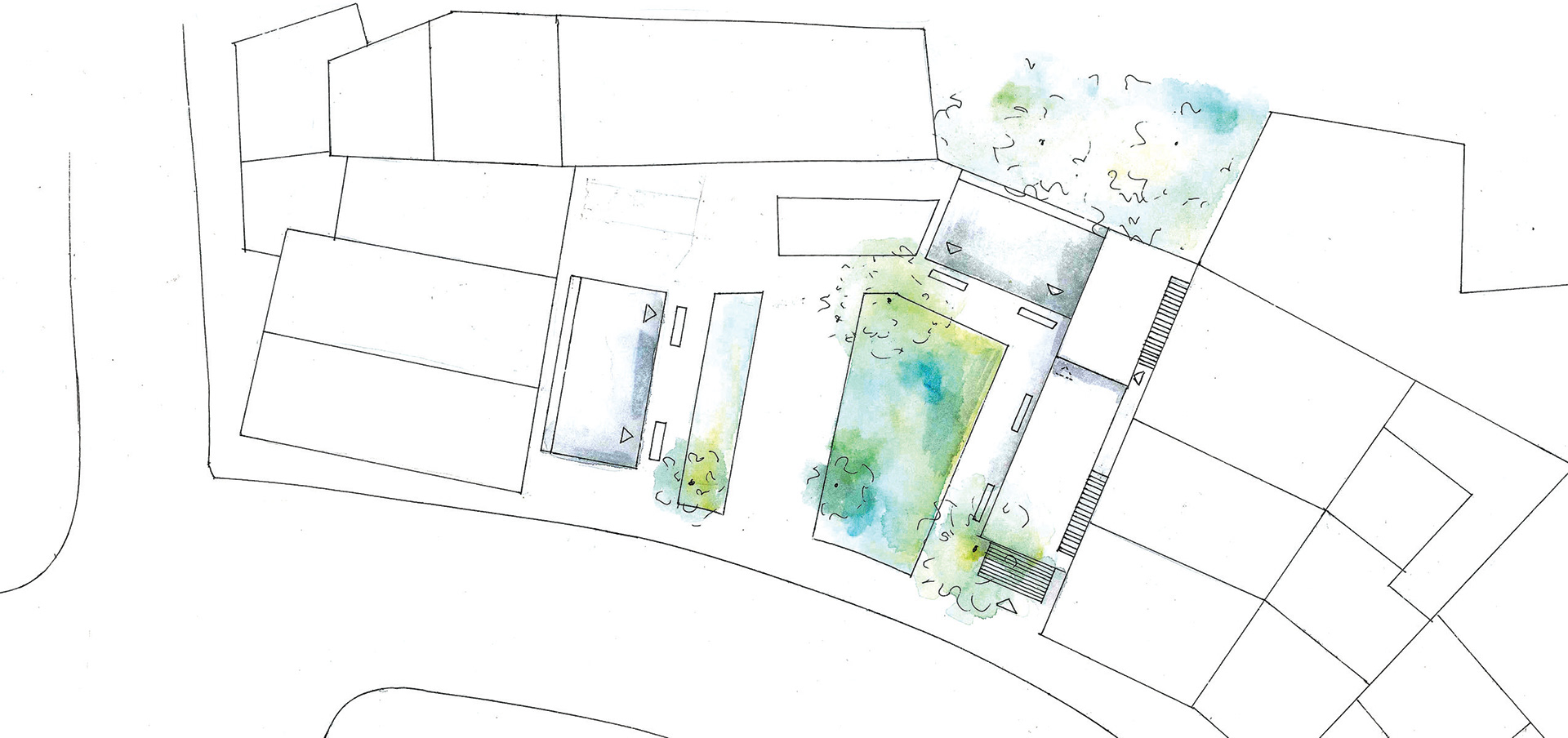

Site Plan
![](https://cdn.myportfolio.com/fdb4ec76-4de5-4231-96a2-ea75dda3ad03/5f920360-46c9-4ed7-aa57-23d316d0130f_rw_1920.jpg?h=85432cec00484548c0021e766fe4dac4)

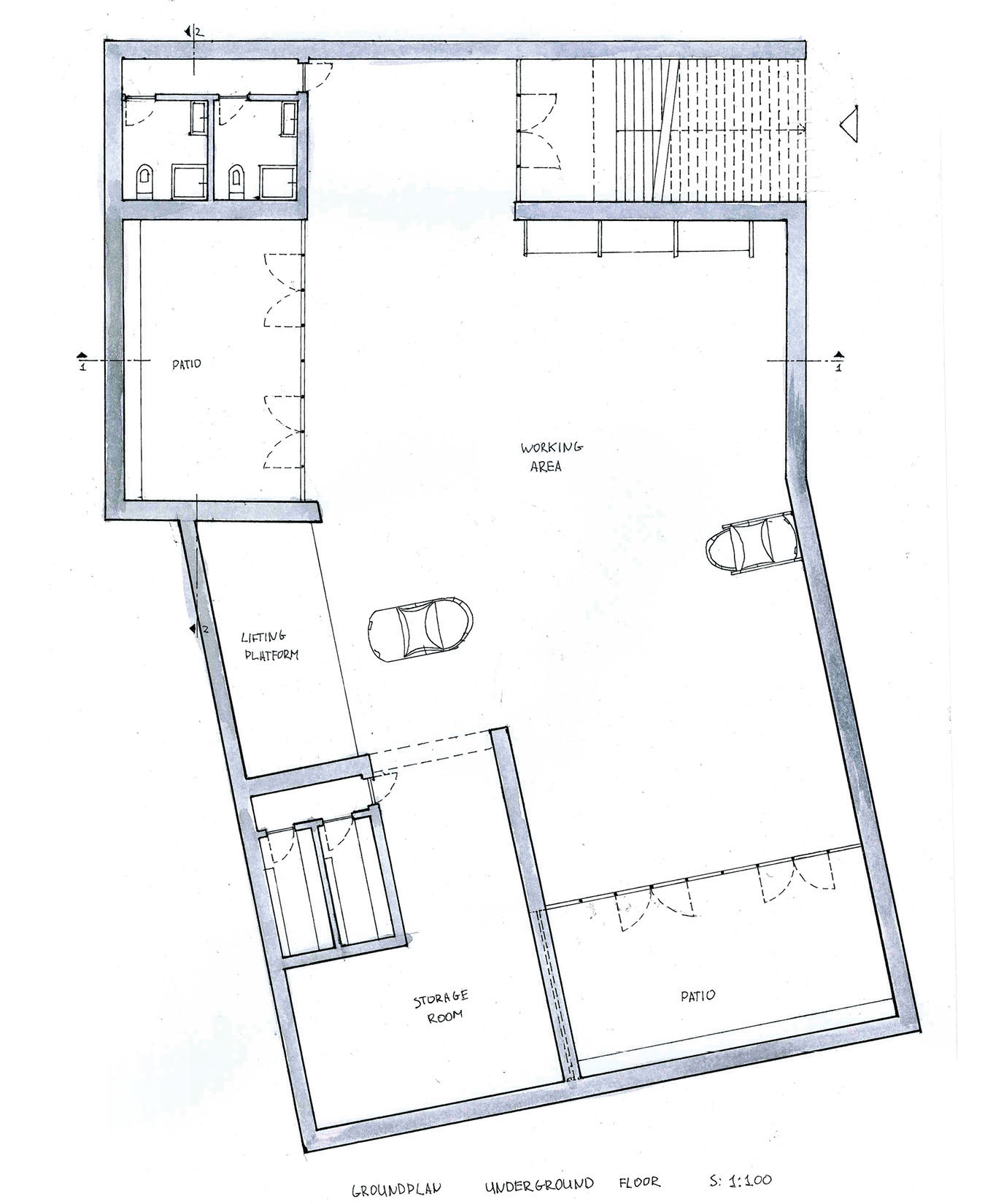

Underground Floor Plan
![](https://cdn.myportfolio.com/fdb4ec76-4de5-4231-96a2-ea75dda3ad03/be6e5295-c37a-4e3e-97e9-ccc0044e831e_rw_1200.jpg?h=9e28b4f22a963c2b48706d2a67a0e114)

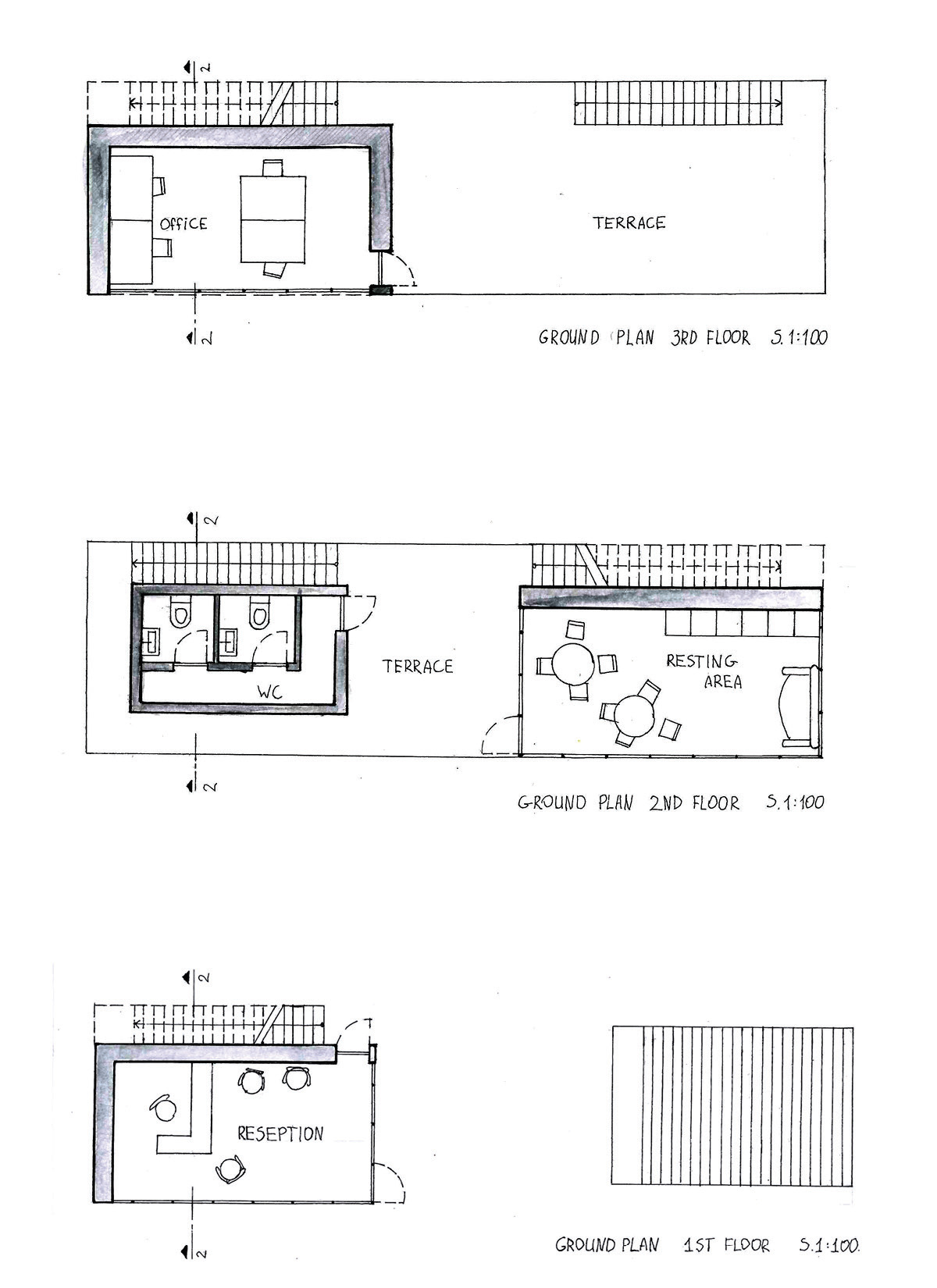

1st, 2nd and 3rd Floor Plans
![](https://cdn.myportfolio.com/fdb4ec76-4de5-4231-96a2-ea75dda3ad03/34928cac-1d7b-4e5f-a417-b149b973a61a_rw_1920.jpg?h=ab159578fdcd4e38317a39e41d2e3187)
View Patio
![](https://cdn.myportfolio.com/fdb4ec76-4de5-4231-96a2-ea75dda3ad03/31a6d844-ca31-4478-94f3-ad52135fe676_rw_1920.jpg?h=44ee106ed828ad043a1a228905533345)
Cross-Section
![](https://cdn.myportfolio.com/fdb4ec76-4de5-4231-96a2-ea75dda3ad03/31d66be5-7cf5-45d8-93d2-1165a7f1dc13_rw_1920.jpg?h=01921714ccfae8dfb4b540c32feb3fe8)
Longitudinal Section
![](https://cdn.myportfolio.com/fdb4ec76-4de5-4231-96a2-ea75dda3ad03/fc9c8e59-802a-4f92-9104-bd686a6aab2d_rw_1920.jpg?h=5ad31f3ac89a37df431841ce1888c052)
South-East Elevation
![](https://cdn.myportfolio.com/fdb4ec76-4de5-4231-96a2-ea75dda3ad03/6af853a0-a092-4d5c-9b00-00510140a116_rw_1920.jpg?h=4b3c4ec18631c7ee784679af14622eaf)
View of the Building
![](https://cdn.myportfolio.com/fdb4ec76-4de5-4231-96a2-ea75dda3ad03/aa081344-643d-47a7-ae4e-69f23543e080_rw_1920.jpg?h=3d38f9b104e51a24267f31f907592ab3)
Building Model
![](https://cdn.myportfolio.com/fdb4ec76-4de5-4231-96a2-ea75dda3ad03/d97e00a5-1827-4913-807e-6020c4387463_rw_1920.jpg?h=0e86e20f9896d0adfe682e84697b4a04)
Building Model
